Load Filament

Here you can find the instructions how to Load the Filament on your Belt printer.

1. Set the Temperature to 220 Degrees.​

Tap on the temperature behind "Extruder", enter 220 and click the checkmark to confirm.

Wait for the Temperature to reach 220 Degrees.

Create or login

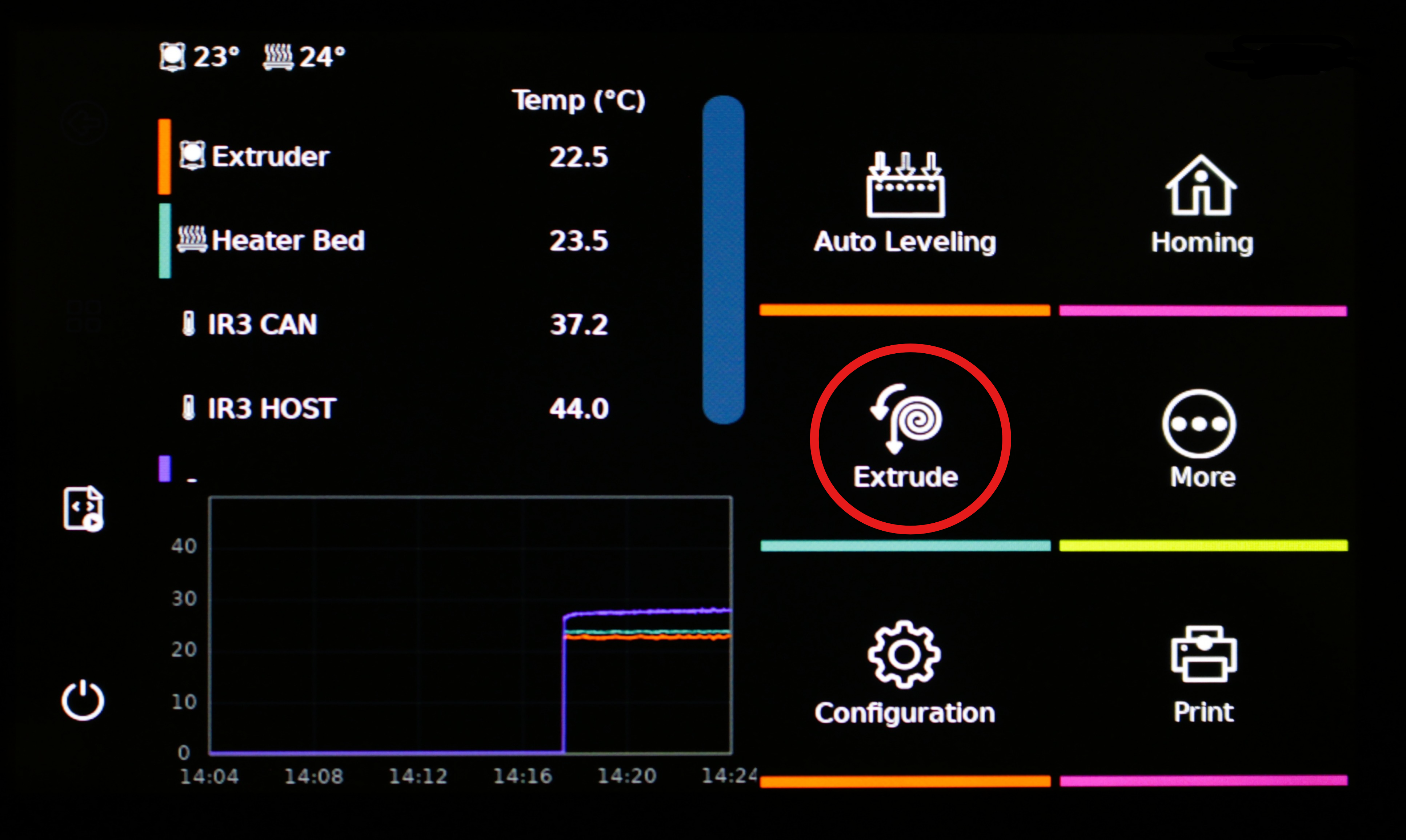

2. Navigate to the right menu.​

  1. Go to the home screen
  2. Click on Extrude Create or login

Optional​

tip

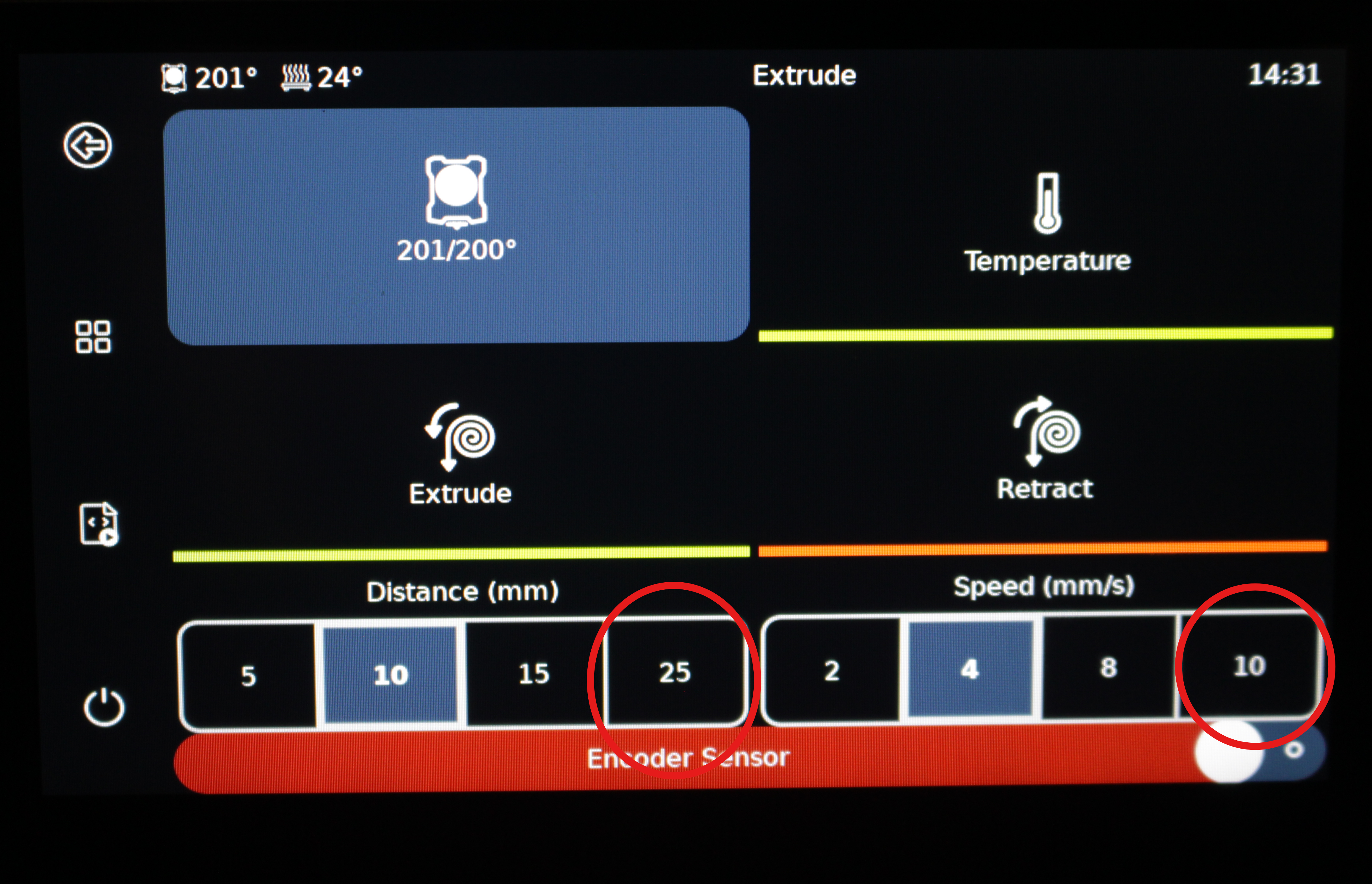

Change the distance and speed to the maximum for the filament to load quicker.

Create or login

3. Remove the PTFE tube.​

  1. Remove the blue clip
  2. Press the black part where the PFTE tube enters the extruder
  3. While pressing the black part pull out the PFTE tube

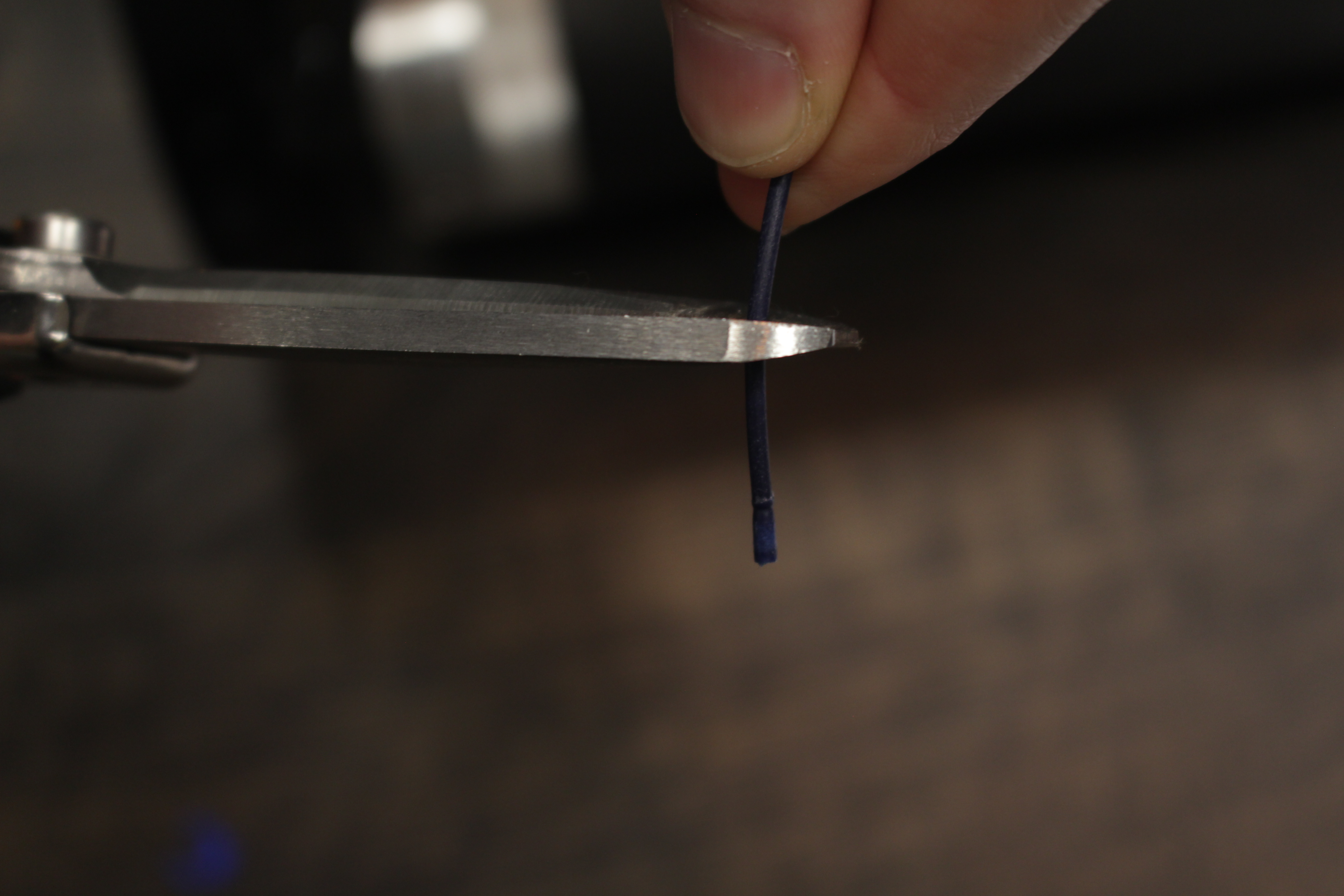

  4. Cut the filament off straight.

Create or login Create or login

4. Load the filament through the tube.​

Push the filament in the back of the printhead, through the white tube.

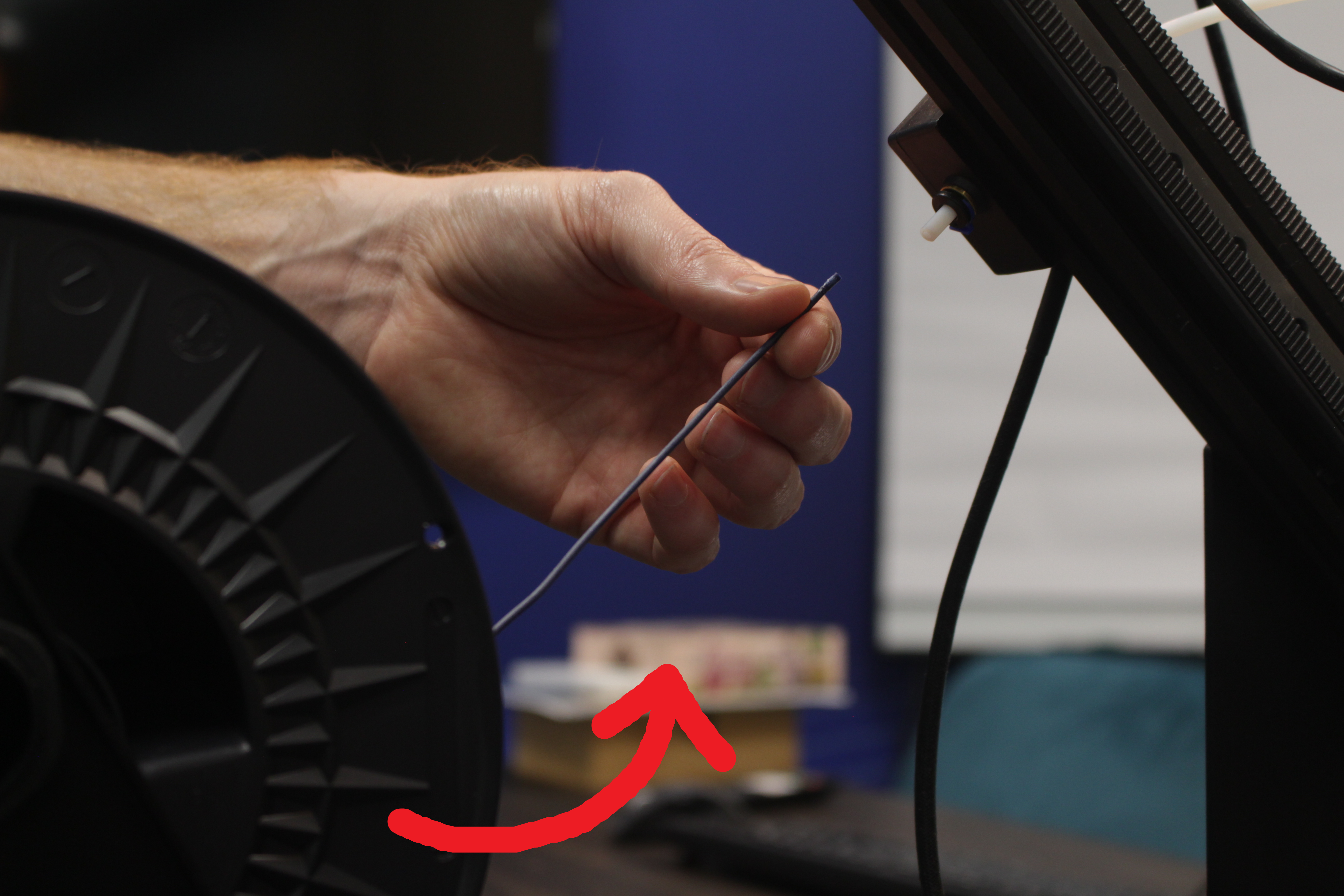

Make sure that the material from the spool loads in downwards like the arrow shown down below.

Create or login

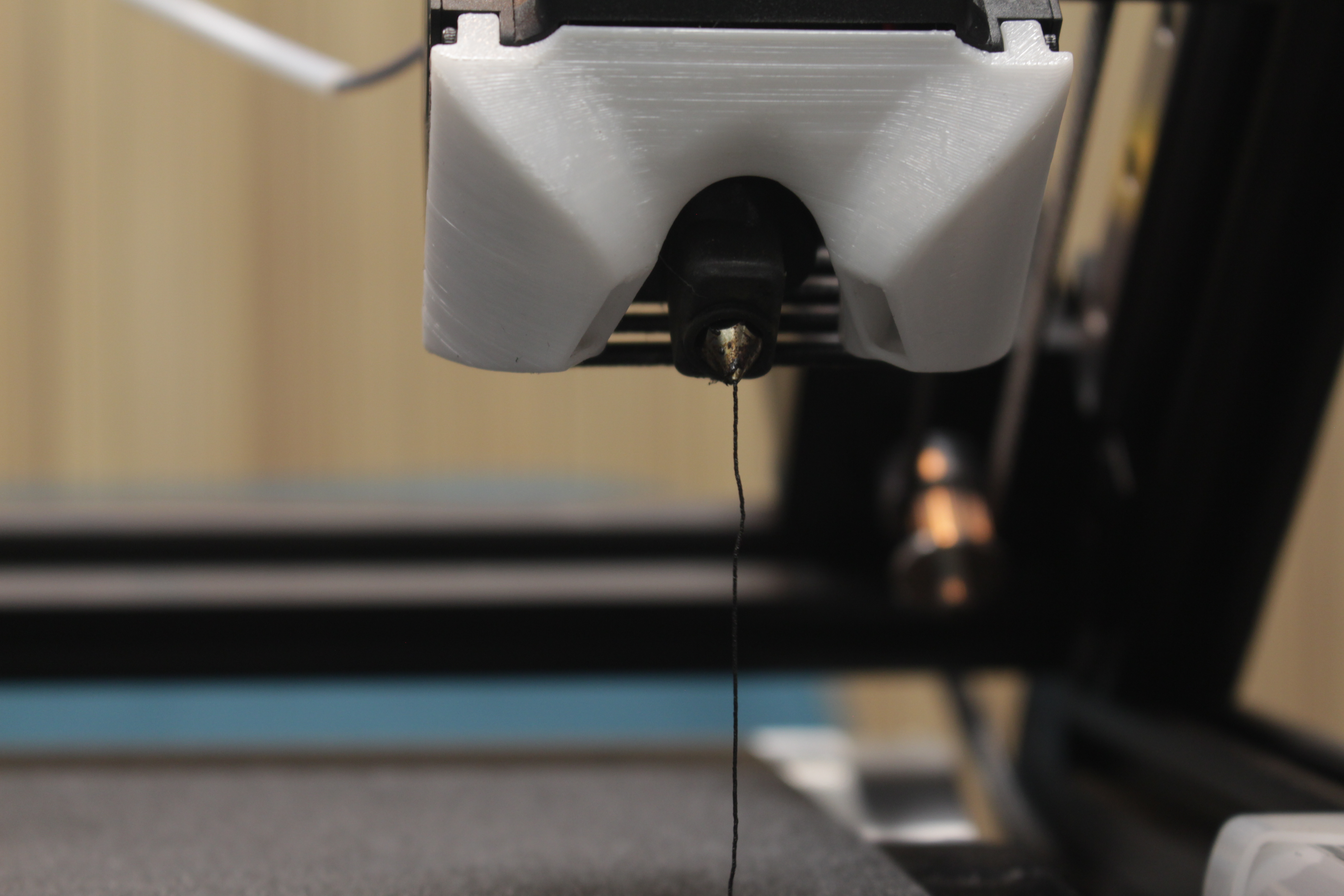

5. Extrude until material comes out of the nozzle.​

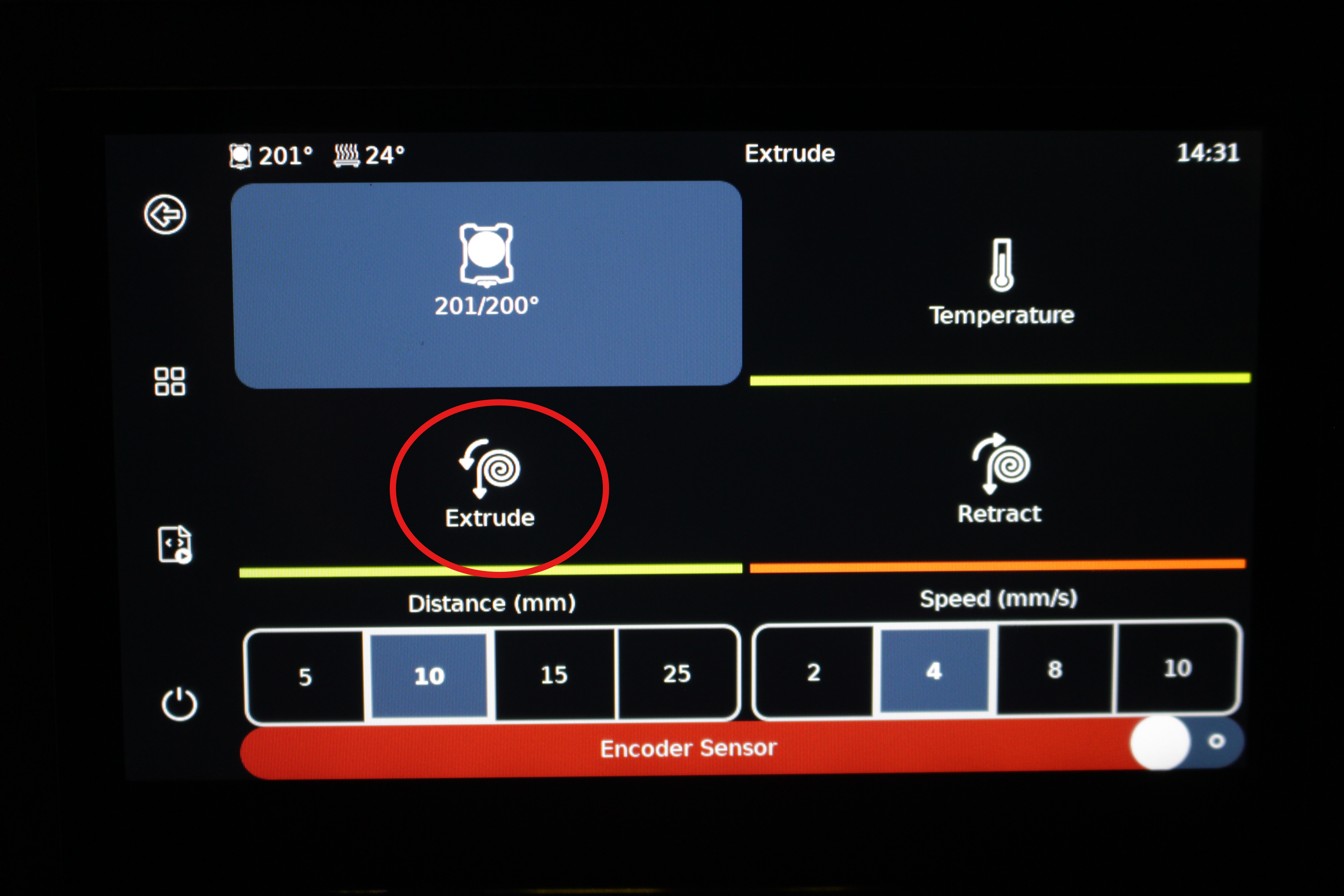

When the material is fully pushed through the PFTE tube. You can click the Extrude button on the screen to extrude the material.

Click on Extrude Create or login

Create or login

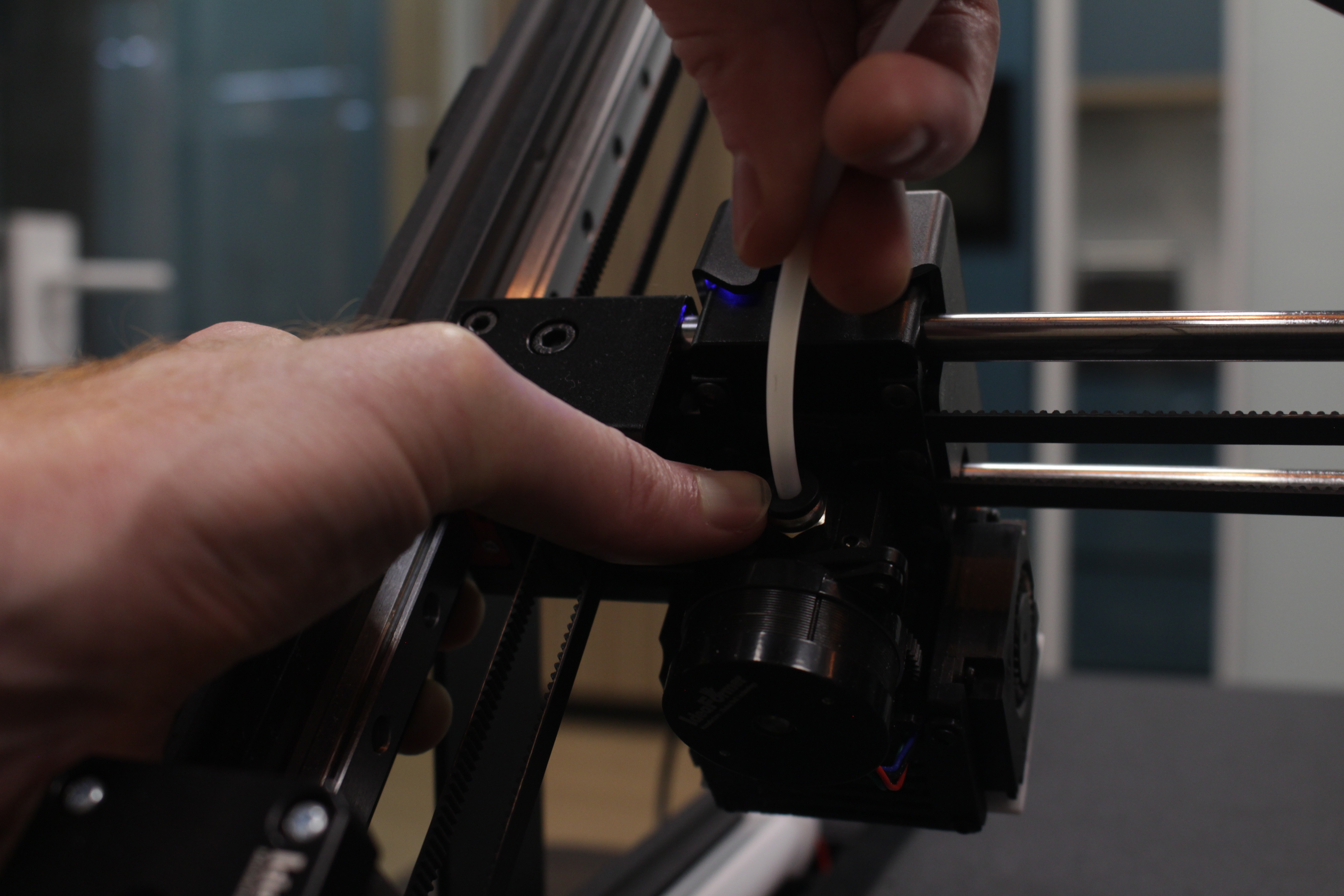

6. Put the tube back in it's place.​

Create or login

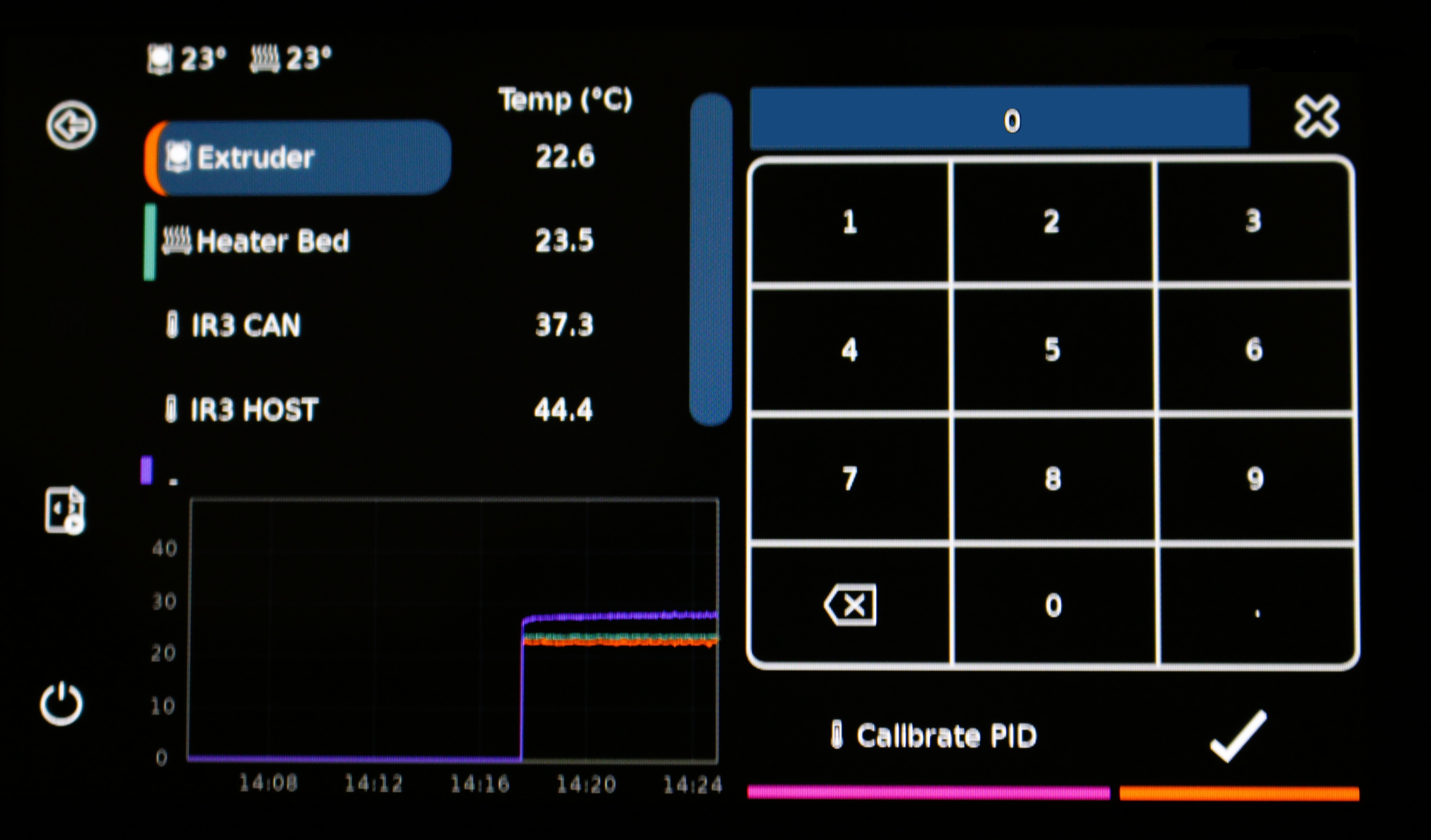

7. Put the temparture back to 0 Degrees.​

Tap on the temperature behind "Extruder", enter 0 and click the checkmark to confirm.

Create or login
